| Transport Weight: | 12.9 |
| Seat Widths: | 12" 13" 14" 15" 16" 18" 19" 20" |
| Product Weight: | 21 lbs. |
| Legrest Options: | Fixed |
| Seat to Floor Heights: | 16" to 21" |
| Frame Type: | Rigid |
| Seat Depths: | 12" 13" 14" 15" 16" 17" 18" 19" 20" |
| Back Height: | 10" 11" 12" 13" 14" 15" 16" 17" 18" 19" 20" |
| Rear Wheel Size: | 20" 22" 24" 25" 26" |
| Quick-Release Axles: | Yes |
| Product Weight Range: | 20 lbs to 30 lbs |
Overview

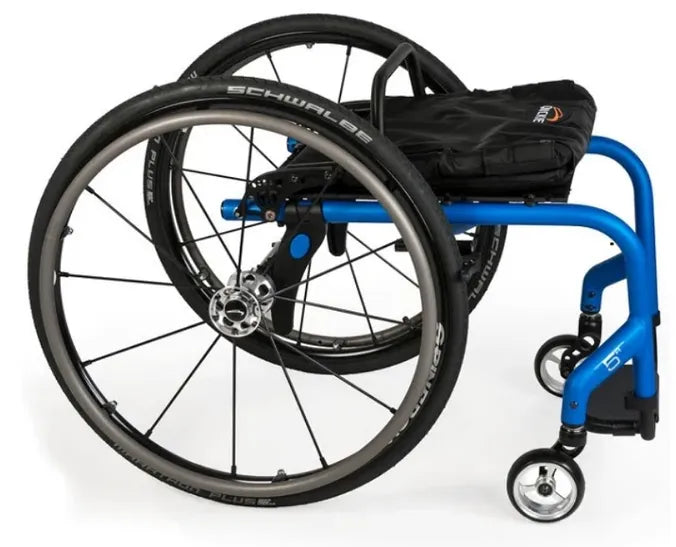

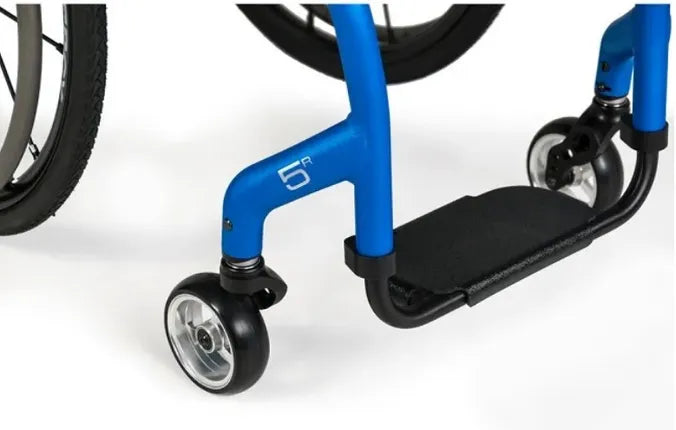

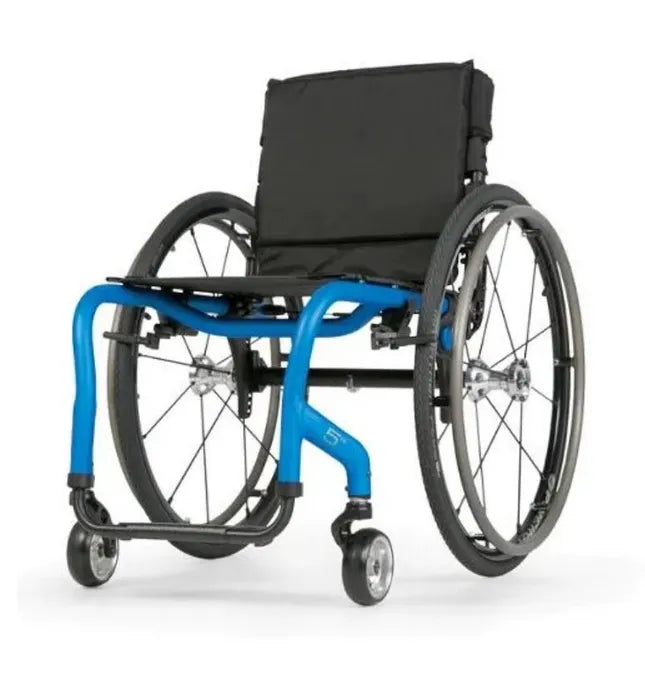

Sunrise Medical's Quickie 5R, with its open-frame, evolutionary design, raises the bar for customization and flexibility. The Quickie 5R has a frame architecture that improves ride comfort, and the swept-back, hydro-formed caster link gives the chair a more streamlined look. The Quickie 5R's axle plate is highly changeable and can be quickly customized to meet your individual requirements. The Quickie 5R is compatible with a wide range of alternatives, including premium solutions, to guarantee that your mobility demands are addressed without compromising your independence.
Measuring Guide
Seat Depth1
Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg.
Back Height2
Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate.
Rear Seat to Floor3
Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat.
Hanger Angle4
Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular.
Seat Width5
Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant.
Wheel Camber6
Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber.
Front Seat to Floor7
Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled.
Footrest Width8
Measure from the inside of each legrest tubing the distance or desired distance between legrests.
Center of Gravity9
Measure from the front of the seat back post to the center of the rear axel.
Seat to Footrest Length10
Measure from the edge of the seat upholstery to the top rear of the footrest.
Backrest Angle11
Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump.
Product Highlights- Over 25 frame color choices
- Adjustable frame components evolve with your performance and needs
- Open-frame design with hydro-formed caster link
- Quick-adjust axle plate design for customized range without the added weight.
